FGB Bearings offers a complete line of spherical plain bearings (Joint bearings) available in inch and metric.The plain bearings come in standard industrial bore sizes from 0.5" to 12" inches, as well as metric sizes from as small as 4 to 600 mm.

Category:

Radial spherical plain bearings

Email：FGB@FGBearing.com   FGBearing@mail.ru

WhatsApp：+86-18865252255   +86-13034538296

Inquiry
Contact
  • Product Description
  • Parameter
  • Application
  • Factory
  • Honor
  • Honor
    • Maintenance-free radial spherical plain bearings
    1. GE..ET –  Steel-on-PTFE..Fabric Material, metric dimensions, single fractured, with seals
    2. GE..XT –  Steel-on-PTFE..Fabric Material, metric dimensions, double fractured, with seals
    3. GEG..ET –  Steel-on-PTFE..Fabric Material, metric dimensions, single fractured, with seals, high misalignment
    4. GEG..XT –  Steel-on-PTFE..Fabric Material, metric dimensions, double fractured, with seals, high misalignment
    5. GEZ..ET –  Steel-on-PTFE..Fabric Material, inch dimensions, single fractured, with seals
    6. GEFZ..T –  Steel-on-PTFE..Fabric Material, inch dimensions, single fractured
    7. GEH..XT –  Steel-on-PTFE Fabric..Material, metric dimensions, double fracture, extra wide
    8. GEH..XT –  Steel-on-PTFE..Fabric Material, metric dimensions, double fracture, extra wide, with seals
    9. GEC..XT –  Steel-on-PTFE Fabric..Material, metric dimensions, double fracture, wide inner
    10. GEC..XT –  Steel-on-PTFE..Fabric Material, metric dimensions, double fracture, wide inner, with seals
    11. GEC..HT –  Steel-on-PTFE Fabric..Material, metric dimensions, circumferential split, wide
    12. GEH..HT –  Steel-on-PTFE Fabric..Material, metric dimensions, circumferential split, extra wide
    13. GE..ET/X – Stainless  Steel-on-PTFE Fabric Material, metric dimensions, single fractured, with seals
    14. GE..ET/X – Stainless  Steel-on-PTFE Fabric Material, metric dimensions, single fractured, with seals
    15. GE..XT/X – Stainless  Steel-on-PTFE Fabric Material, metric dimensions, double fractured, with seals
    16. GE..XT/X – Stainless  Steel-on-PTFE Fabric Material, metric dimensions, double fractured, with seals
    17. GEC..HC – Steel-on-PTFE Composite Material, Compact profile, with outer lubrication groves
    18. GEC..HCS – Steel-on-PTFE Composite Material, Compact profile, with inner and outer lubrication groves
    19. GEH..HC – Steel-on-PTFE Composite Material, Heavier profile, with outer lubrication groves
    20. GEH..HCS – Steel-on-PTFE Composite Material, Heavier profile, with inner and outer lubrication groves
    21. GE..XF/Q – Chrome Steel outer ring, axially split twice with Inner Ring of Copper Alloy
    22. GEC..XF/Q – Chrome Steel outer ring, axially split twice with Inner Ring of Copper Alloy
    23. GEH..XF/Q – High Capacity, Chrome Steel outer ring, axially split twice with Inner Ring of Copper Alloy
    24. GE..C –  Steel-on-PTFE sintered bronze contact surface combination, One..piece formed outer ring, Metric dimensions
    25. GEH..C –  Steel-on-PTFE sintered bronze contact surface combination, One..piece formed outer ring, Metric dimensions, high misalignment
    26. GEBJ..S –  Steel-on-Steel, One..piece formed outer ring, Metric dimensions
    27. GEFZ..S –  Steel-on-Steel, One..piece formed outer ring, Inch dimensions
    28. GAC..T –  Steel-on-PTFE Fabric, Angular Contact, Metric Dimensions
    29. GAC..N –  Steel-on-PTFE Plastic, Angular Contact, Metric Dimensions

    Key words:

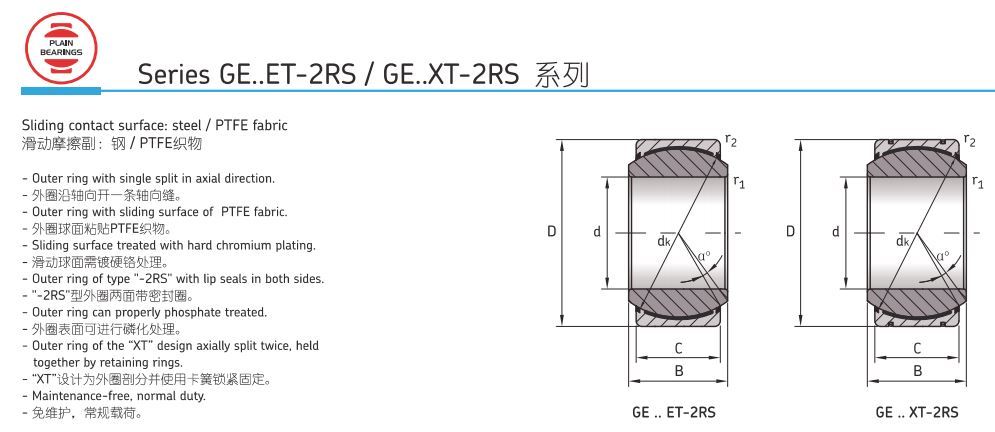

    • ES Radial Spherical Plain Bearing

  • Item no. Principal dimensions Basic load ratings Mass
    d D B C dk r1 r2 α Dynamic Static
    mm Deg. C (kN) C0 (kN) kg
    GE 15 ET-2RS 15 26 12 9 22 0.3 0.3 8 23 47 0.027
    GE 17 ET-2RS 17 30 14 10 25 0.3 0.3 10 30 60 0.041
    GE 20 ET-2RS 20 35 16 12 29 0.3 0.3 9 42 83 0.066
    GE 25 ET-2RS 25 42 20 16 35.5 0.6 0.6 7 68 137 0.119
    GE 30 ET-2RS 30 47 22 18 40.7 0.6 0.6 6 88 176 0.153
    GE 35 ET-2RS 35 55 25 20 47 0.6 1 6 112 224 0.233
    GE 40 ET-2RS 40 62 28 22 53 0.6 1 7 140 280 0.306
    GE 45 ET-2RS 45 68 32 25 60 0.6 1 7 180 360 0.427
    GE 50 ET-2RS 50 75 35 28 66 0.6 1 6 220 440 0.546
    GE 55 ET-2RS 55 85 40 32 74 0.6 1 7 280 560 0.864
    GE 60 ET-2RS 60 90 44 36 80 1 1 6 345 695 1.04
    GE 70 ET-2RS 70 105 49 40 92 1 1 6 440 880 1.55
    GE 80 ET-2RS 80 120 55 45 105 1 1 6 567 1140 2.31
    GE 90 ET-2RS 90 130 60 50 115 1 1 5 590 1370 2.75
    GE 100 ET-2RS 100 150 70 55 130 1 1 7 858 1730 4.45
    GE 110 ET-2RS 110 160 70 55 140 1 1 6 924 1860 4.82
    GE 120 ET-2RS 120 180 85 70 160 1 1 6 1340 2700 8.05
    GE 140 XT-2RS 140 210 90 70 180 1 1 7 1500 3000 11.02
    GE 160 XT-2RS 160 230 105 80 200 1 1 8 1920 3800 14.01
    GE 180 XT-2RS 180 260 105 80 225 1.1 1.1 6 2160 4320 18.65
    GE 200 XT-2RS 200 290 130 100 250 1.1 1.1 7 3000 6000 28.03
    GE 220 XT-2RS 220 320 135 100 275 1.1 1.1 8 3300 6600 35.51
    GE 240 XT-2RS 240 340 140 100 300 1.1 1.1 8 3600 7200 39.91
    GE 260 XT-2RS 260 370 150 110 325 1.1 1.1 7 4290 8580 51.54
    GE 280 XT-2RS 280 400 155 120 350 1.1 1.1 6 5000 10000 64.8
    GE 300 XT-2RS 300 430 165 120 375 1.1 1.1 7 5050 10800 77.5

  • Joint bearings are widely used in engineering hydraulic cylinders, forging machine tools, engineering machinery, automation equipment, automobile shock absorbers, water conservancy machinery and other industries. Introduction and classification of joint bearings are spherical sliding bearings, the basic type is made of spherical sliding spherical contact surface composed of inner and outer rings.



  •

    FGB (shandong) Bearing Mfg Co.,ltd.  is located in Bearing Industrial Park, Linqing City, Shandong Province.  It was established in September 2004 with a registered capital of 20 million yuan and a factory area of ​​26,000 square meters.  The company has more than 100 automatic CNC equipment.  It is a joint bearing manufacturer integrating R&D, production and sales.
