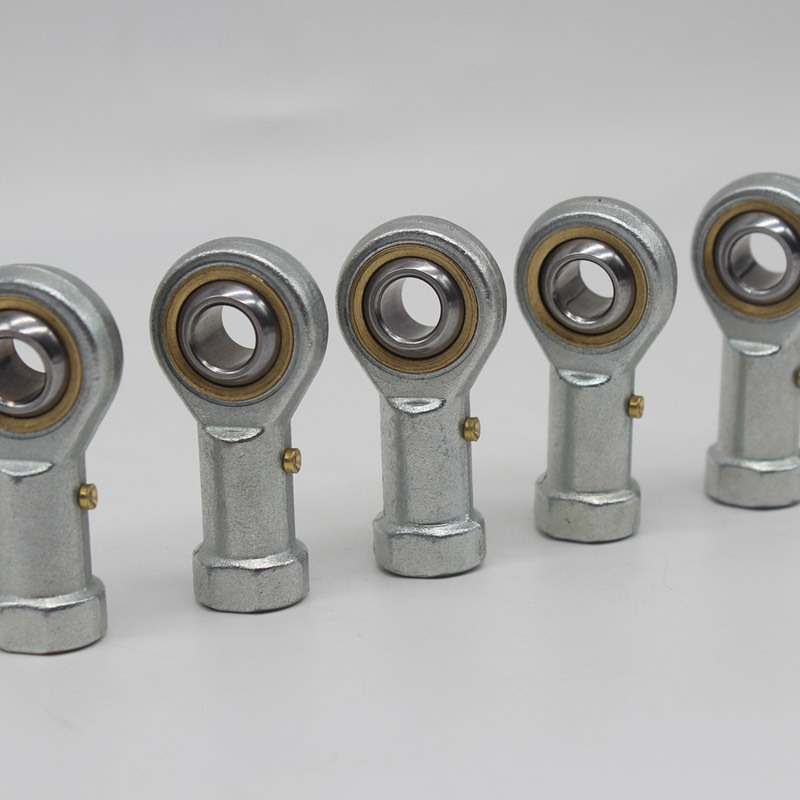

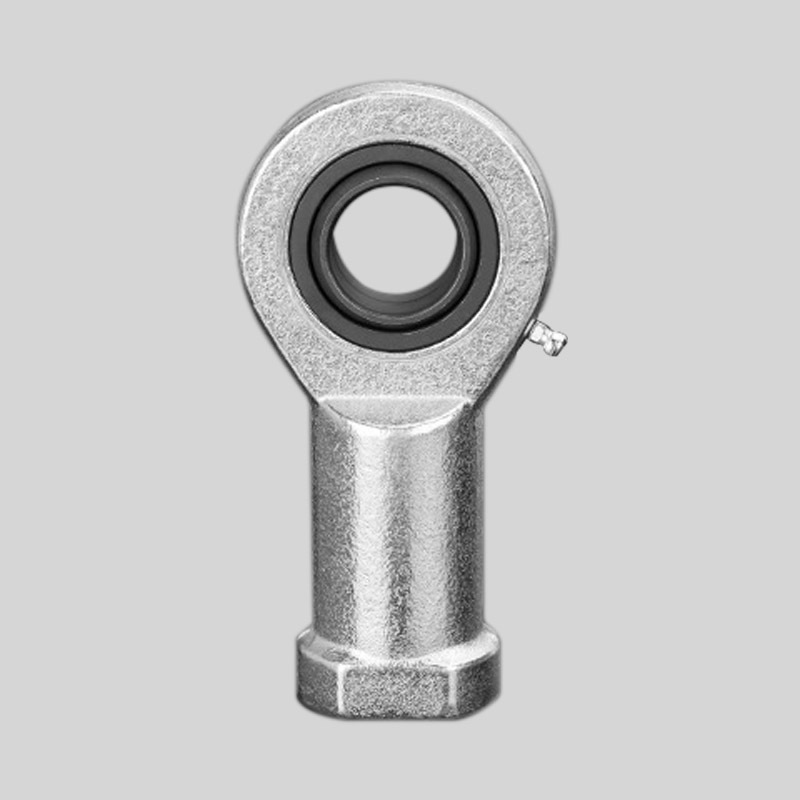

SA rod end bearings / Heim joints:
Rod ends consist of an eye-shaped head with integral shank forming a housing and a standard spherical plain bearing, or a spherical plain bearing inner ring, or a spherical plain bearing inner ring and a sliding layer between the bore of the head and the inner ring. As a rule, rod ends are available with left or right-hand female or male threads.
FGB supplies a wide assortment of standard rod ends with different thread and shank designs at the rod end housing, making them easy to install.
Rod ends help you achieve precisely controlled motion in articulating mechanisms without misalignment or damaging deflections. They feature uniform clearance between sliding surfaces to allow better tilting, oscillation, low-torque rotation and smooth power transmission and provide excellent wear resistance.
For use on the ends of cylinders, linkages, rods, and shafts in a range of equipment applications.
Key words:- Aligning roller bearing
-
Item No. Principal dimensions Load ratings Weight d B dK C1 / Max d2 G h l1 / Min l2 l7 rs αº Dynamic Static mm 6H mm Deg. C (kN) C0 (kN) ≈kg SA5E 5 6 10 4.5 21 M5 36 16 46.5 11.5 0.3 13 3.4 3.9 0.015 SA6E 6 6 10 4.5 21 M6 36 16 46.5 11.5 0.3 13 3.4 5.5 0.016 SA8E 8 8 13 6.5 24 M8 42 21 54 13 0.3 15 5.5 10 0.026 SA10E 10 9 16 7.5 29 M10 48 26 62.5 15.5 0.3 12 8.1 16 0.05 SA12E 12 10 18 8.5 34 M12 54 28 71 18 0.3 10 10 23 0.068 SA15ES 15 12 22 10.5 40 M14 63 34 83 21 0.3 8 16 32 0.12 SA17ES 17 14 25 11.5 46 M16 69 36 92 24 0.3 10 21 44 0.19 SA20ES 20 16 29 13.5 53 M20×1.5 78 43 104.5 25.5 0.3 9 30 60 0.3 SA25ES 25 20 35.5 18 64 M24×2 94 53 126 31 0.6 7 48 83 0.555 SA30ES 30 22 40.7 20 73 M30×2 110 65 146.5 35.5 0.6 6 62 110 0.875 SA35ES 35 25 47 22 82 M36×3 140 82 181 41 0.6 6 79 146 1.42 SA40ES 40 28 53 24 92 M39×3 150 86 196 47 0.6 7 99 180 1.85 SA45ES 45 32 60 28 102 M42×3 163 92 214 52 0.6 7 127 240 2.49 SA50ES 50 35 66 31 112 M45×3 185 104 241 60 0.6 6 156 290 3.58 SA60ES 60 44 80 39 135 M52×3 210 115 277.5 75.5 1 6 245 450 5.89 SA70ES 70 49 92 43 160 M56×4 235 125 315 95 1 6 313 610 8.51 SA80ES 80 55 105 48 180 M64×4 270 140 360 105.5 1 6 400 750 12.3 -
For use on the ends of cylinders, linkages, rods, and shafts in a range of equipment applications.
-
FGB (shandong) Bearing Mfg Co.,ltd. is located in Bearing Industrial Park, Linqing City, Shandong Province. It was established in September 2004 with a registered capital of 20 million yuan and a factory area of 26,000 square meters. The company has more than 100 automatic CNC equipment. It is a joint bearing manufacturer integrating R&D, production and sales.
-
-
