    GX...S GE...AX Steel / Steel Axial thrust Spherical Plain Bearings

    Axial thrust spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel

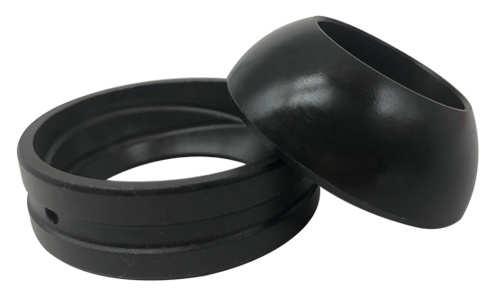

    Bearing housing washer of carbon chromium steel, hardened and phosphated, have groove and lubrication holes. Shaft washer of carbon chromium steel, hardened and phosphated.



    Axial thrust spherical plain bearings have a convex spherical surface on the shaft washer and a corresponding concave spherical surface in the housing washer. These bearings are intended to accommodate axial loads primarily, but can also accommodate combined (radial and axial) loads. The radial load component of a combined load should not exceed 50% of the axial load component. When radial loads are larger, thrust bearings should be combined with radial bearings in the GE dimension series.



    The steel-on-steel axial thrust spherical plain bearings supplied by FGB are made of carbon chromium steel and are hardened and phosphated,  it has characteristics of wear-resistance and wear-corrosion. Bearings with this sliding contact surface combination require regular relubrication. To facilitate efficient lubrication, housing washer have an annular groove and a lubrication hole. The high wear resistance of the sliding surfaces makes these bearings especially suitable for bearing arrangements where heavy loads of alternating direction, shock loads or heavy static loads have to be accommodated.



    Axial thrust spherical plain bearings can be separated, enabling shaft and housing washers to be mounted separately.



    Interchange:

    FGB Bearing
    series    		 LS Bearing
    series    		 INA Bearing
    series
    GX...S GX...S GE...AX
    for example
    GX80S GX80S GE80AX

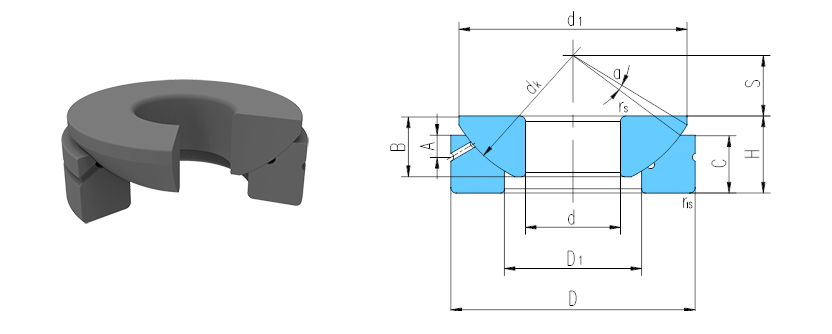

  • Item No. Principal dimensions Load ratings Weight
    d D B C H dk S A d1 D1 rs,r1s α˚ Dynamic Static
    mm max min min Deg. C (kN) C0 (kN) kg
    GX10S 10 30 7.5 7 9.5 32 7 3 27.5 15.5 0.6 5 27 136 0.036
    GX12S 12 35 9.5 9.3 13 38 8 4 32 18 0.6 5 37 188 0.072
    GX15S 15 42 11 10.8 15 46 10 5 39 22.5 0.6 6 53 267 0.108
    GX17S 17 47 11.8 11.2 16 52 11 5 43.5 27 0.6 4 61 311 0.137
    GX20S 20 55 14.5 13.8 20 60 12.5 6 50 31 1 5 84 425 0.246
    GX25S 25 62 16.5 16.7 22.5 68 14 6 58.5 34.5 1 5 134 672 0.415
    GX30S 30 75 19 19 26 82 17.5 8 70 42 1 5 182 909 0.614
    GX35S 35 90 22 20.7 28 98 22 8 84 50.5 1 5 266 1330 0.973
    GX40S 40 105 27 21.5 32 114 24.5 9 97 59 1 6 357 1810 1.59
    GX45S 45 120 31 25.5 36.5 128 27.5 11 110 67 1 6 486 2470 2.24
    GX50S 50 130 33 30.5 42.5 139 30 10 120 70 1 6 554 2810 3.14
    GX60S 60 150 37 34 45 160 35 12.5 140 84 1 6 748 3820 4.63
    GX70S 70 160 42 36.5 50 176 35 13.5 153 94.5 1 3 902 4610 5.37
    GX80S 80 180 43.5 38 50 197 42.5 14.5 172 107.5 1 4 1110 5700 6.91
    GX100S 100 210 51 46 59 222 45 15 198 127 1.1 4 1300 6470 11
    GX120S 120 230 53.5 50 64 250 52.5 16.5 220 145 1.1 3 1530 7580 14
    GX140S 140 260 61 54 72 274 52.5 23 243 177 1.5 3 1820 9040 19.1
    GX160S 160 290 66 58 77 313 65 23 271 200 1.5 2 2100 10440 25
    GX180S 180 320 74 62 86 340 67.5 26 299 225 1.5 4 2430 12070 32.8
    GX200S 200 340 80 66 87 365 70 27 320 247 1.5 1 3070 15280 35.4
