GAC...T GE...SW Angular Contact Spherical Plain Bearings
Category:
Thrust Angular contact spherical plain bearings
WhatsApp：+86-18865252255 +86-13034538296
- Product Description
- Parameter
- Application
- Factory
- Honor
- Honor
-

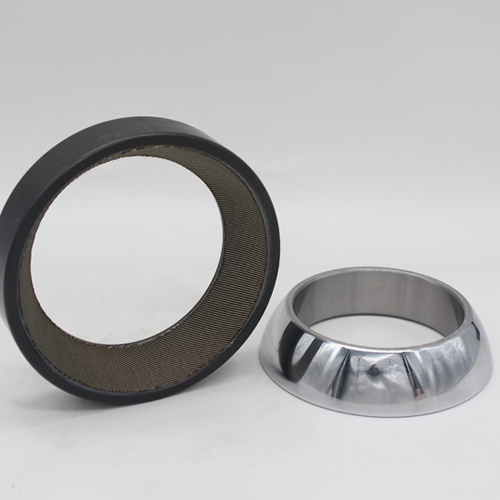

Steel/PTFE fabric Angular Contact Spherical Plain Bearings
Angular contact spherical plain bearing, maintenance-free, inner ring curved surface with hard chromium coating.
Outer rings of carbon chromium steel, hardened，with sliding surface of PTFE fabric, Inner ring of carbon chromium steel, hardened, sliding surface hard chromium plated.Angular contact spherical plain bearings are spherical in shape and inclined at an angle to the bearing axis. This design makes them well suited for accommodating combined (radial and axial) loads. Single angular contact spherical plain bearings can only accommodate axial loads acting in one direction and can be separated, enabling the rings to be mounted separately.
The maintenance-free angular contact spherical plain bearings supplied by FGB have sliding contact surface combinations steel-on-PTFE fabric and steel-on-PTFE plastic, they have very low friction and can be operated without maintenance. Please note that any lubrication of the sliding contact surfaces will shorten bearing life. They are used for applications where long bearing lives are required without maintenance or where operating conditions, such as inadequate lubrication or the absence of lubrication, make the use of steel-on-steel bearing inadvisable. The maintenance-free bearings are primarily intended for applications where loads are heavy and have a constant direction.
Interchange:
FGB Bearing
seriesLS Bearing
seriesINA Bearing
seriesGAC...T GAC...TL GE...SW for example GAC30T GAC30TL GE30SW
-
Item No. Principal dimensions Load ratings Weight d D B C T dk S rs,r1s αº Dynamic Static mm Deg. C (kN) C0 (kN) ≈kg GAC25T 25 47 15 14 15 42 0.6 1 2.5 135 225 0.148 GAC28T 28 52 15 15 16 47 1 1 2 170 280 0.186 GAC30T 30 55 17 15 17 49.5 1.3 1 4.5 175 290 0.208 GAC32T 32 58 17 16 17 52 2 1 2 190 315 0.241 GAC35T 35 62 18 16 18 55.5 2.1 1 4 205 340 0.268 GAC40T 40 68 19 17 19 62 2.8 1 3.5 250 415 0.327 GAC45T 45 75 20 18 20 68.5 3.5 1 3 290 485 0.416 GAC50T 50 80 20 19 20 74 4.3 1 1.5 335 560 0.455 GAC55T 55 90 23 20 23 82 5 1.1 4 405 675 0.645 GAC60T 60 95 23 21 23 88.5 5.7 1.1 2.5 465 775 0.714 GAC65T 65 100 23 22 23 93.5 6.5 1.1 1 495 825 0.759 GAC70T 70 110 25 23 25 102 7.2 1.1 2 575 960 1.04 GAC75T 75 115 25 24 25 107 7.9 1.1 1 660 1100 1.12 GAC80T 80 125 29 25.5 29 115 8.6 1.1 3.5 705 1175 1.54 GAC85T 85 130 29 26.5 29 122 9.4 1.1 2 820 1365 1.61 GAC90T 90 140 32 28 32 128.5 10.1 1.5 3.5 925 1540 2.09 GAC95T 95 145 32 29.5 32 135 10.8 1.5 2 985 1640 2.22 GAC100T 100 150 32 31 32 141 11.6 1.5 0.5 1100 1835 2.34 GAC105T 105 160 35 32.5 35 148 12.3 2 2 1165 1940 2.93 GAC110T 110 170 38 34 38 155 13 2 3 1175 1960 3.68 GAC120T 120 180 38 37 38 168 14.5 2 0.5 1540 2565 3.97 GAC130T 130 200 45 43 45 188 18 2.5 1 1750 2915 5.92 GAC140T 140 210 45 43 45 198 19 2.5 1 1960 3265 6.33 GAC150T 150 225 48 46 48 211 20 3 1 2275 3790 8.01 GAC160T 160 240 51 49 51 225 20 3 1 2700 4500 9.79 GAC170T 170 260 57 55 57 246 21 3 1 3500 5835 12.3 GAC180T 180 280 64 61 64 260 21 3 1 3895 6490 17.4 GAC190T 190 290 64 62 64 275 26 3 0.5 4125 6875 18.2 GAC200T 200 310 70 66 70 290 26 3 1.5 4610 7685 23.8 -
GAC...T / GAC...SW Angular Contact Spherical Plain Bearings
Angular contact spherical plain bearing, maintenance-free, inner ring curved surface with hard chromium coating.
Outer rings of carbon chromium steel, hardened，with sliding surface of PTFE fabric, Inner ring of carbon chromium steel, hardened, sliding surface hard chromium plated.
-
-
-
