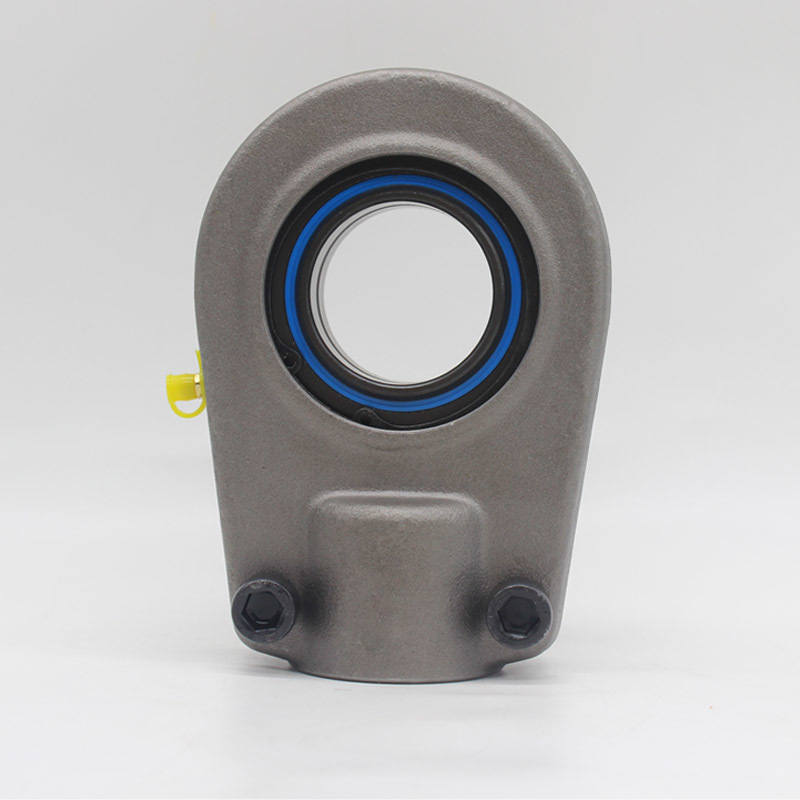

GIHR-K series Rod Ends For Hydraulic Components
Hydraulic rod end, with thread clamping device, requiring maintenance, sliding contact surface: steel/steel.

Features and benefits of GIHRK bearings:

slotted shank with clamping screws - special series for hydraulic cylinders
compact design, shorter female thread
female thread with right-hand (no designation prefix) or left-hand (designation prefix L) thread
bearing in the housing can be exchanged
suitable for heavy static, alternating or impact loads
easy to re-lubricate via the grease fitting in the rod end housing and via the pin (shaft)

Interchange:

FGB Bearing series	LS Bearing series	SKF Bearing series	INA Bearing series
GIHR-K...DO	SIR...ES	SIR...ES	GIHR-K...DO
for example
GIHR-K60DO	SIR60ES	SIR60ES	GIHR-K60DO

GIHRK bearings manufacturers

Key words:

Aligning roller bearing

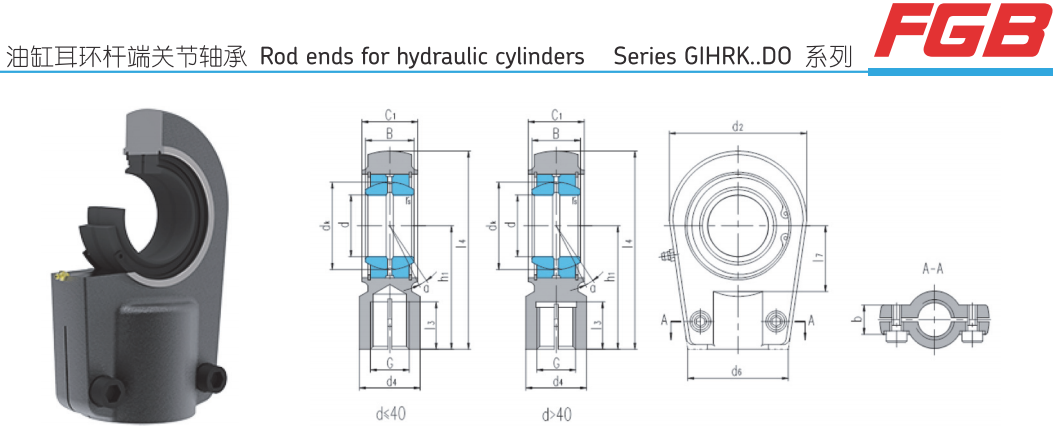

Item No.	Principal dimensions															Load ratings		Screw	Weight
	d	B	dK	C1	d2	G	h1	l3	l4	l7	d4	d6	b	rs	αº	Dynamic	Static		Weight
	mm					6H	mm								Deg.	C (kN)	C0 (kN)		≈kg
GIHRK20DO	20	16	29	19	56	M16×1.5	50	17	80	25	25	46	20	0.3	9	30	81	M8×20	0.44
GIHRK25DO	25	20	35.5	23	56	M16×1.5	50	17	80	25	25	46	21	0.6	7	48	72	M8×20	0.47
GIHRK30DO	30	22	40.7	28	64	M22×1.5	60	23	94	30	32	50	26	0.6	6	62	106	M8×25	0.77
GIHRK35DO	35	25	47	30	78	M28×1.5	70	29	112	38	40	66	28	0.6	6	79	153	M10×30	1.24
GIHRK40DO	40	28	53	35	94	M35×1.5	85	36	135	45	49	76	33	0.6	7	99	250	M10×35	2.12
GIHRK50DO	50	35	66	40	116	M45×1.5	105	45	168	55	61	90	37	0.6	6	156	365	M12×40	3.74
GIHRK60DO	60	44	80	50	130	M58×1.5	130	59	200	65	75	120	46	1	6	245	400	M16×45	6.49
GIHRK70DO	70	49	92	55	154	M65×1.5	150	66	232	75	86	130	51	1	6	313	540	M16×50	9.88
GIHRK80DO	80	55	105	60	176	M80×2	170	81	265	80	105	160	55	1	6	400	670	M20×55	14.2
GIHRK90DO	90	60	115	65	206	M100×2	210	101	323	90	124	180	60	1	5	488	980	M20×60	23.5
GIHRK100DO	100	70	130	70	231	M110×2	235	111	360	105	138	200	65	1	7	607	1120	M24×65	32.14
GIHRK110DO	110	70	140	80	266	M120×3	265	125	407	115	152	220	74	1	6	654	1700	M24×80	47.6
GIHRK120DO	120	85	160	90	340	M130×3	310	135	490	140	172	257	84	1	6	950	2900	M24×80	72

GIHR-K series Rod Ends For Hydraulic Components

FGB rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a grease fitting in the housing and via the shaft.

Materials:
Housing - 45#. forged
Bearing - Steel on steel bearing GE...DO. requiring lubrication
Greasing: - Fitted with hydraulic grease nipples to DIN 71412.
