GK series Rod Ends For Hydraulic Components

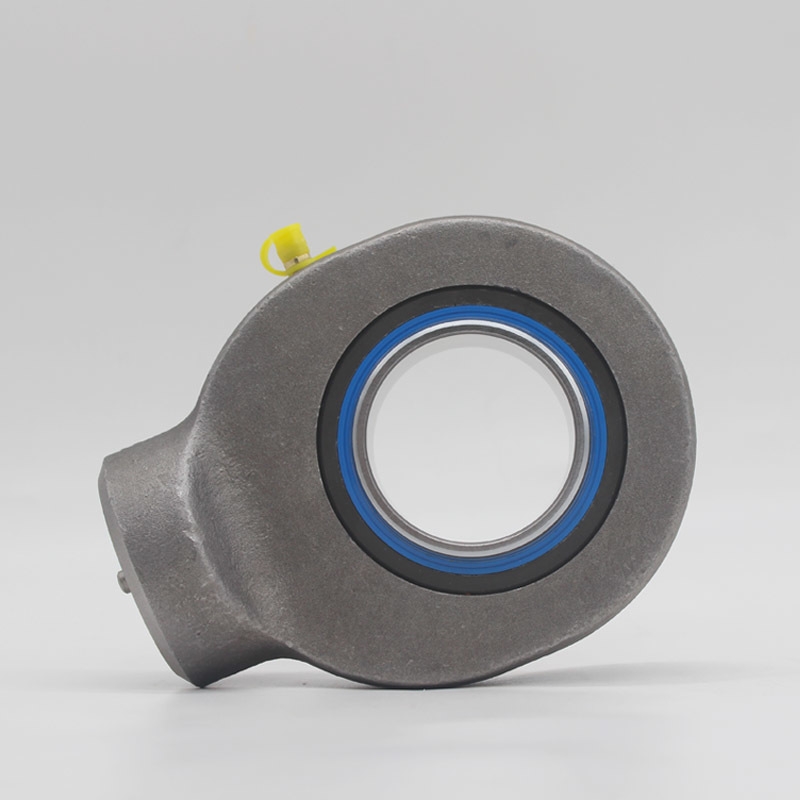

Rod end, requires maintenance, rectangular section welding shank

These FGB rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a grease fitting in the housing and via the shaft. The housing with the rectangular section welding shank enables heavy static loads.

Features and benefits:
welding shank with cylindrical or rectangular section
simple and ready-to-mount
Easy to relubricate
Bearing can be exchanged
Suitable for heavy static, alternating or impact loads

Interchange:

FGB Bearing series	LS Bearing series	SKF Bearing series	INA Bearing series
GK...DO	SK...ES	SC...ES	GK...DO
for example
GK20DO	SK20ES	SC20ES	GK20DO

Key words:

Aligning roller bearing

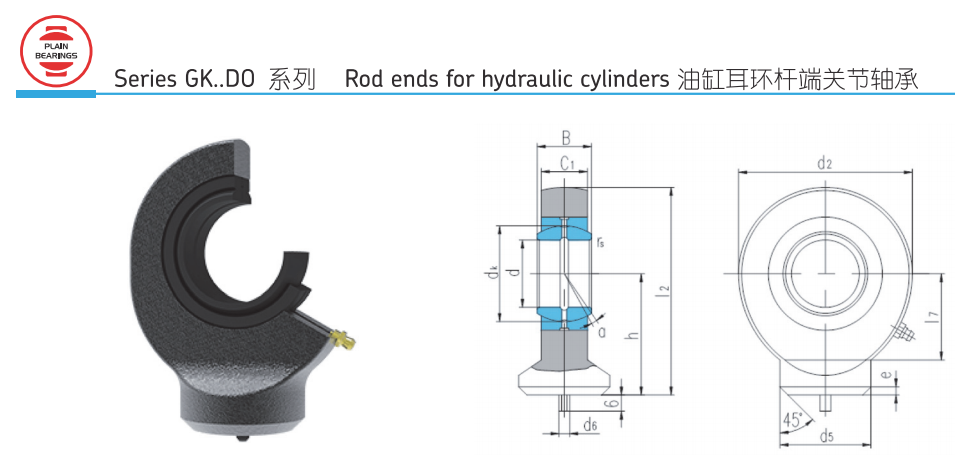

Item No.	Principal dimensions													Load ratings		Weight
	d	B	dk	C1	d2	h	l2	l7	d5	d6	e	rs	αº	Dynamic	Static	Weight
	mm												Deg.	C (kN)	C0 (kN)	≈kg
GK10DO¹⁾	10	9	16	7	29	24	38.5	15	15	3	2	0.3	12	8.1	15	0.041
GK12DO¹⁾	12	10	18	8	34	27	44	17.5	17.5	3	2	0.3	10	10	21	0.066
GK15DO²⁾	15	12	22	10	40	31	51	20	21	4	2.5	0.3	8	16	32	0.12
GK16DO²⁾	16	14	25	11	46	35	58	23	24	4	3	0.3	10	21	40	0.19
GK17DO²⁾	17	14	25	11	46	35	58	23	24	4	3	0.3	10	21	40	0.18
GK20DO	20	16	29	13	53	38	64.5	27.5	27.5	4	3	0.3	9	30	54	0.26
GK25DO	25	20	35.5	17	64	45	77	33	33.5	4	4	0.6	7	48	72	0.45
GK30DO	30	22	40.7	19	73	51	87.5	37.5	40	4	4	0.6	6	62	95	0.67
GK35DO	35	25	47	21	82	61	102	43	47	4	4	0.6	6	79	125	1.02
GK40DO	40	28	53	23	92	69	115	48	52	4	5	0.6	7	99	156	1.4
GK45DO	45	32	60	27	102	77	128	52	58	6	5	0.6	7	127	208	1.93
GK50DO	50	35	66	30	112	88	144	59	62	6	6	0.6	6	156	250	2.69
GK60DO	60	44	80	38	135	100	167.5	72.5	70	6	8	1	6	245	390	4.6
GK70DO	70	49	92	42	160	115	195	85.5	80	6	10	1	6	313	510	7
GK80DO	80	55	105	47	180	141	231	98	95	6	10	1	6	400	620	11

GK series Rod Ends For Hydraulic Components

Rod Ends with rectangular surface for weld-on Spherical Plain Bearings, regreasable.

For Weld-On to cylinder bottoms

Materials:
Housing - 45#. forged
Bearing - Steel on steel bearing GE...DO. requiring lubrication
Greasing: - Fitted with hydraulic grease nipples to DIN 71412.
