FGB Bearings : Spherical plain bearings | Ball bearings | Roller bearings

Email：FGB@FGBearing.com    FGBearing@mail.ru

Products

Message

GOST WCL SHSL GI Spherical plain bearings - ШСЛ
GOST WCL SHSL GI Spherical plain bearings - ШСЛ
GOST WCL SHSL GI Spherical plain bearings - ШСЛ
GOST WCL SHSL GI Spherical plain bearings - ШСЛ
GOST WCL SHSL GI Spherical plain bearings - ШСЛ
GOST WCL SHSL GI Spherical plain bearings - ШСЛ
GOST WCL SHSL GI Spherical plain bearings - ШСЛ
GOST WCL SHSL GI Spherical plain bearings - ШСЛ
GOST WCL SHSL GI Spherical plain bearings - ШСЛ
GOST WCL SHSL GI Spherical plain bearings - ШСЛ

GOST WCL SHSL GI Spherical plain bearings - ШСЛ

Spherical plain bearings are sliding bearings whose inner and outer rings have spherical sliding surfaces. Spherical plain bearings are designed to transmit radial, axial, and combined loads in movable or stationary connections of machines and mechanisms.

Category:

GOST spherical plain bearings

Email：FGB@FGBearing.com   FGBearing@mail.ru

WhatsApp：+86-18865252255   +86-13034538296

Inquiry
Contact
  • Product Description
  • Parameter
  • Application
  • Factory
  • Honor
  • Honor

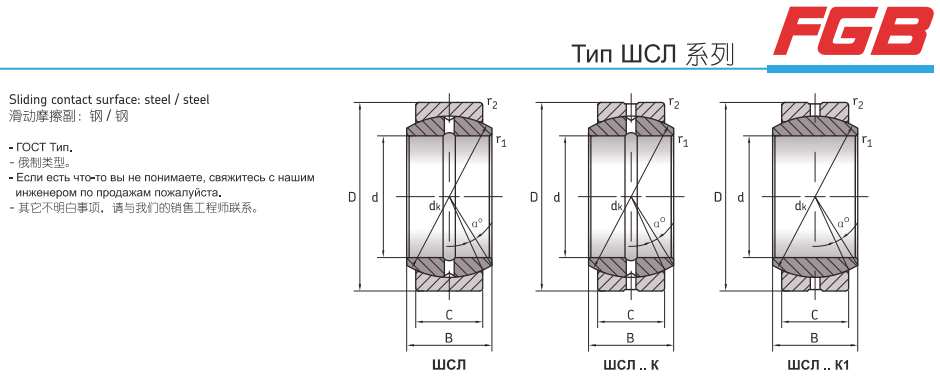

    SHSL WCL spherical plain bearings

    Designations of Spherical Plain Bearings.
    Spherical plain bearings are sliding bearings whose inner and outer rings have spherical sliding surfaces. Spherical plain bearings are designed to transmit radial, axial, and combined loads in movable or stationary connections of machines and mechanisms.



    Bearings No. Mainly size Basic load ratings kH Weight
    GOST NO. FGB NO. d D B C r1 r2 Deg. Dynamic Static
    мм α Cr Cor Kgs
    ШСЛ60 GI60 60 90 44 34 2 0.8 6 244.8 1224 0.942
    GШСЛ60 GEG60 60 105 63 40 1.1 1 17 336 1680 2.082
    2ШСЛ60 2GI60 60 110 60 34 2 0.8 19 267 1337 2.184
    6ШСЛ60 6GI60 60 130 85 70 2 0.8 20 684.3 3421.3 5.7
    ШСЛ70 GI70 70 105 49 40 2 0.8 6 312.8 1564 1.56
    GШСЛ70 GEG70 70 120 70 45 1.1 1 16 435 2173 2.942
    2ШСЛ70 2GI70 70 125 70 35 2.5 0.8 22 314 1571 2.41
    ШСЛ80 GI80 80 125 76 70 2 0.8 6 678.3 3391.5 3.78
    ШСЛ90 GI90 90 130 60 50 2 0.8 5 488.8 2443.8 2.79
    2ШСЛ90 2GI90 90 160 80 50 3 0.8 15 552.5 2762.5 6.1
    ШСЛ100 GI100 100 150 70 55 2 1 7 607.8 3038.8 4.3
    ШСЛ110 GI110 110 160 70 55 1.1 1 6 654.5 3272.5 4.7
    ШСЛ120 GI120 120 180 85 70 2 1 6 952 4760 8.09
    2ШСЛ120 2GI120 120 215 130 90 3 1 14 1576 7880 19.7
    ШСЛ130 GI130 130 200 95 52 3 1 16 773.5 3867.5 8.93
    2ШСЛ150 2GI150 150 270 160 110 2 1.5 15 2361 1180.5 39.85



    Articulated Connection Types: Ш ШЛ ШС ШП ШСП ШСЛ ШСР ШСШ ШН ШЛТ Ш..Е ШУ ШВХ

    An articulated connection is a connection where spherical plain bearings operate with the mutual displacement of one ring relative to the other, at relatively low sliding speeds.

    Ш - Spherical plain bearing for movable connections without holes and grooves for lubrication.
    ШЛ - Spherical plain bearing without holes and grooves for lubrication, with two fractures on the outer ring in the transverse direction.
    ШС - Spherical plain bearing for movable connections with holes and grooves for lubrication in the inner ring.
    ШП - Spherical plain bearing without holes and grooves for lubrication, with a single transverse fracture on the outer ring.
    ШСП - Spherical plain bearing with holes and grooves for lubrication in the inner ring, and a single transverse fracture on the outer ring.
    ШСЛ - Spherical plain bearing with holes and grooves for lubrication in the inner ring, and two fractures on the outer ring in the transverse direction.
    ШСР - Spherical plain bearing with holes and grooves for lubrication in the inner ring, and a slot on the outer ring in the longitudinal direction.
    ШСШ - Spherical plain bearing with holes and grooves for lubrication in the inner ring, and a wide inner ring.
    ШН - Spherical plain bearing for movable connections with a sliding surface of steel / metal-fluoroplastic - has a non-detachable design.
    ШЛТ - Spherical plain bearing for movable connections with a sliding surface of steel / aramid fiber and the outer rings have a two-fracture construction.
    Ш..Е - Spherical plain bearing with inner rings made of composite material - a mixture of polyamide with fluoroplastic.
    ШУ - Radial-thrust spherical plain bearings.
    ШВХ - Spherical plain bearing with a stud.

    Key words:
    • WCN bearings
    • gost bearing
    • spherical plain bearings
    • sliding bearing
    • sliding bush
    • spherical bearing
    • spherical bush

  • SHSL WCL spherical plain bearings

    Designations of Spherical Plain Bearings.
    Spherical plain bearings are sliding bearings whose inner and outer rings have spherical sliding surfaces. Spherical plain bearings are designed to transmit radial, axial, and combined loads in movable or stationary connections of machines and mechanisms.



    Bearings No. Mainly size Basic load ratings kH Weight
    GOST NO. FGB NO. d D B C r1 r2 Deg. Dynamic Static
    мм α Cr Cor Kgs
    ШСЛ60 GI60 60 90 44 34 2 0.8 6 244.8 1224 0.942
    GШСЛ60 GEG60 60 105 63 40 1.1 1 17 336 1680 2.082
    2ШСЛ60 2GI60 60 110 60 34 2 0.8 19 267 1337 2.184
    6ШСЛ60 6GI60 60 130 85 70 2 0.8 20 684.3 3421.3 5.7
    ШСЛ70 GI70 70 105 49 40 2 0.8 6 312.8 1564 1.56
    GШСЛ70 GEG70 70 120 70 45 1.1 1 16 435 2173 2.942
    2ШСЛ70 2GI70 70 125 70 35 2.5 0.8 22 314 1571 2.41
    ШСЛ80 GI80 80 125 76 70 2 0.8 6 678.3 3391.5 3.78
    ШСЛ90 GI90 90 130 60 50 2 0.8 5 488.8 2443.8 2.79
    2ШСЛ90 2GI90 90 160 80 50 3 0.8 15 552.5 2762.5 6.1
    ШСЛ100 GI100 100 150 70 55 2 1 7 607.8 3038.8 4.3
    ШСЛ110 GI110 110 160 70 55 1.1 1 6 654.5 3272.5 4.7
    ШСЛ120 GI120 120 180 85 70 2 1 6 952 4760 8.09
    2ШСЛ120 2GI120 120 215 130 90 3 1 14 1576 7880 19.7
    ШСЛ130 GI130 130 200 95 52 3 1 16 773.5 3867.5 8.93
    2ШСЛ150 2GI150 150 270 160 110 2 1.5 15 2361 1180.5 39.85



    Articulated Connection Types: Ш ШЛ ШС ШП ШСП ШСЛ ШСР ШСШ ШН ШЛТ Ш..Е ШУ ШВХ

    An articulated connection is a connection where spherical plain bearings operate with the mutual displacement of one ring relative to the other, at relatively low sliding speeds.

    Ш - Spherical plain bearing for movable connections without holes and grooves for lubrication.
    ШЛ - Spherical plain bearing without holes and grooves for lubrication, with two fractures on the outer ring in the transverse direction.
    ШС - Spherical plain bearing for movable connections with holes and grooves for lubrication in the inner ring.
    ШП - Spherical plain bearing without holes and grooves for lubrication, with a single transverse fracture on the outer ring.
    ШСП - Spherical plain bearing with holes and grooves for lubrication in the inner ring, and a single transverse fracture on the outer ring.
    ШСЛ - Spherical plain bearing with holes and grooves for lubrication in the inner ring, and two fractures on the outer ring in the transverse direction.
    ШСР - Spherical plain bearing with holes and grooves for lubrication in the inner ring, and a slot on the outer ring in the longitudinal direction.
    ШСШ - Spherical plain bearing with holes and grooves for lubrication in the inner ring, and a wide inner ring.
    ШН - Spherical plain bearing for movable connections with a sliding surface of steel / metal-fluoroplastic - has a non-detachable design.
    ШЛТ - Spherical plain bearing for movable connections with a sliding surface of steel / aramid fiber and the outer rings have a two-fracture construction.
    Ш..Е - Spherical plain bearing with inner rings made of composite material - a mixture of polyamide with fluoroplastic.
    ШУ - Radial-thrust spherical plain bearings.
    ШВХ - Spherical plain bearing with a stud.

    • Applications
    • A-frames, dump cylinders, front and rear struts, and steering cylinders for mining trucks
    • Equalizer track bars, lift and tilt cylinders, push blades, trunnion balls and ripper blades for bulldozers
    • Articulated joint upper and lower steering cylinders and boom and bucket cylinders for wheel loaders
    • Stick and bucket cylinders for hydraulic excavators
    • Additional applications for space shuttles, heavy movable structures and miscellaneous vehicles

  •

MESSAGE

Have a question about FGB company or our products? Let's connect!

Submit
