GEZ..ES GEZ..ES-2RS GE..ZO GE..ZO-2RS inch series bearings, FGB Bearings offers a complete line of spherical plain bearings (Joint ball bearings) available in inch and metric.  FGB's spherical plain bearings are divided into two main categories based upon the need and ability for lubrication: Spherical Plain Bearings Requiring Maintenance and Maintenance-Free Spherical Plain Bearings Size range: from 0.5" to 12" inches, as well as metric sizes from as small as 4 to 600 mm. Custom sizes can also be ordered.

Category:

Radial spherical plain bearings

Email：FGB@FGBearing.com   FGBearing@mail.ru

WhatsApp：+86-18865252255   +86-13034538296

Inquiry
Contact
  • Product Description
  • Parameter
  • Application

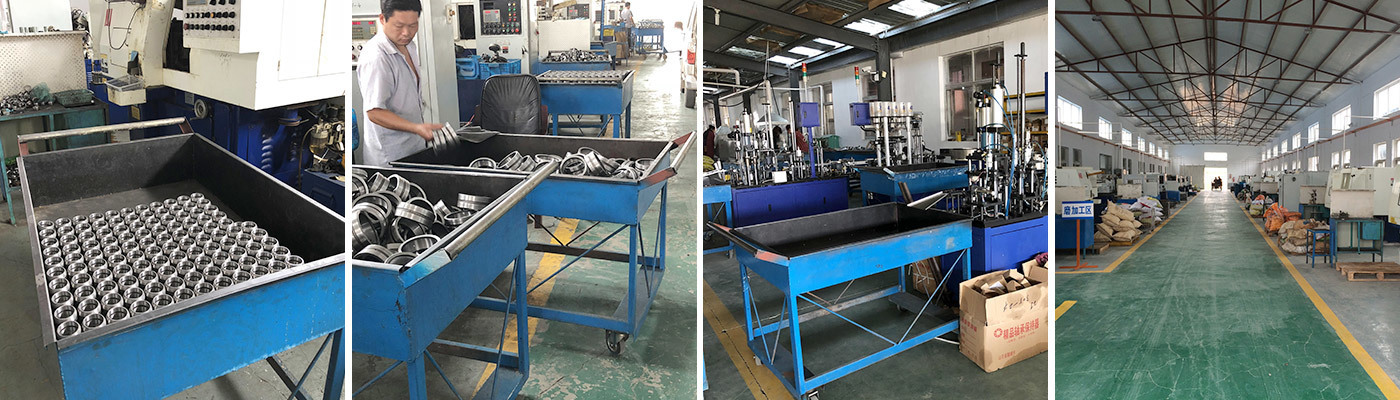

  • Factory
  • Honor
  • Honor

    • SPHERICAL PLAIN BEARING / JOINT BALL BEARING / GEZ..ES GEZ..ES-2RS GE..ZO GE..ZO-2RS inch series bearings

    Spherical Plain Bearings (Joint ball bearings) are used in high load and severe misalignment conditions. They may also be used in applications requiring low speed oscillation or tilting motion. spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface without any rolling elements. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds, often accompanied with heavy loads.

    While all plain bearings are precision ground and made from through-hardened steel, custom orders are available and can include special materials, clearances, surface finishes or configurations to accommodate unique applications.

    FGB Bearings offers a complete line of spherical bearings available in inch and metric.

    FGB's spherical plain bearings are divided into two main categories based upon the need and ability for lubrication: Spherical Plain Bearings Requiring Maintenance and Maintenance-Free Spherical Plain Bearings.

    Size range: from 0.5" to 12" inches, as well as metric sizes from as small as 4 to 600 mm. Custom sizes can also be ordered.



    • Design Attributes
    1. Rings manufactured from hardened steel help deliver consistent, reliable performance.
    2. Phosphate-treated rings coated with molybdenum disulfide (MoS2) minimize friction of contacting surfaces.
    3. Simplified housing and shaft designs reduce installation time.



    • Applications
    1. A-frames, dump cylinders, front and rear struts, and steering cylinders for mining trucks
    2. Equalizer track bars, lift and tilt cylinders, push blades, trunnion balls and ripper blades for bulldozers
    3. Articulated joint upper and lower steering cylinders and boom and bucket cylinders for wheel loaders
    4. Stick and bucket cylinders for hydraulic excavators
    5. Additional applications for space shuttles, heavy movable structures and miscellaneous vehicles
    Key words:
    • bearings
    • spherical plain bearings
    • Joint ball bearings
    • FGB Bearings
    • FGB spherical plain bearings
    • GE20DO-2RS INA bearing no
    • GEZ inch bearings
    • GE..ZO inch bearings
    • GE50ZO BEARING
    • GEZ200ES

  • FGB

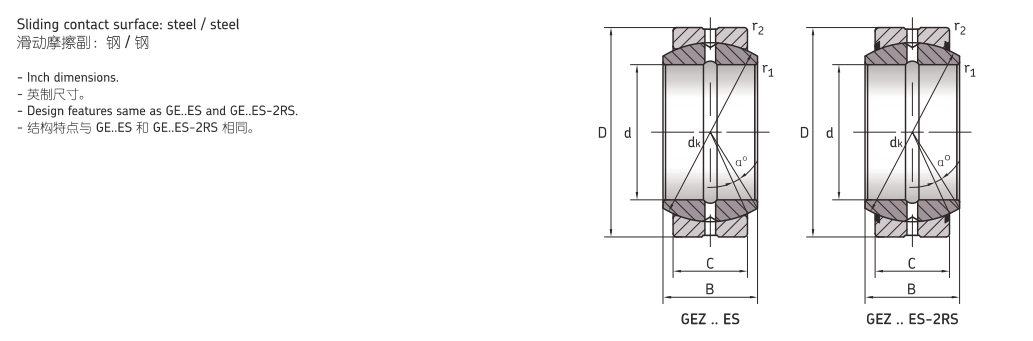

    Itemno.    		 Principal dimensions Basic load ratings Mass
    d D B C dk r1 r2 α Dynamic Static
    mm / inch Deg. C (kN) C0 (kN) kg
    GEZ008ES   12.7000  22.2250  11.1000  9.5250  18.2630  0.150  0.600  6 14 41.5 0.02
    SBB8   12.7000  22.2250  11.1000  9.5250  18.2630  0.150  0.600
    GE12ZO   0.5000  0.8750  0.4370  0.3750  0.7190  0.006  0.024
    GEZ010ES   15.8750  26.9660  13.8940  11.9130  22.8350  0.150  1.000  6 21.6 65.5 0.035
    SBB10   15.8750  26.9660  13.8940  11.9130  22.8350  0.150  1.000
    GE15ZO   0.6250  1.0625  0.5470  0.4690  0.8990  0.006  0.039
    GEZ012ES GEZ012ES-2RS 19.0500  31.7500  16.6620  14.2750  27.4320  0.300  1.000  6 31.5 93 0.055
    SBB12 SBB12-2RS 19.0500  31.7500  16.6620  14.2750  27.4320  0.300  1.000
    GE19ZO GE19ZO-2RS 0.7500  1.2500  0.6560  0.5620  1.0800  0.012  0.039
    GEZ014ES GEZ014ES-2RS 22.2250  36.5130  19.4310  16.6620  31.9530  0.300  1.000  6 42.5 127 0.85
    SBB14 SBB14-2RS 22.2250  36.5130  19.4310  16.6620  31.9530  0.300  1.000
    GE22ZO GE22ZO-2RS 0.8750  1.4375  0.7650  0.6560  1.2580  0.012  0.039
    GEZ100ES GEZ100ES-2RS 25.4000  41.2750  22.2250  19.0500  36.5000  0.300  1.000  6 56 166 0.12
    SBB16 SBB16-2RS 25.4000  41.2750  22.2250  19.0500  36.5000  0.300  1.000
    GE25ZO GE25ZO-2RS 1.0000  1.6250  0.8750  0.7500  1.4370  0.012  0.039
    GEZ104ES GEZ104ES-2RS 31.7500  50.8000  27.7620  23.8000  45.5930  0.600  1.000  6 86.5 260 0.23
    SBB20 SBB20-2RS 31.7500  50.8000  27.7620  23.8000  45.5930  0.600  1.000
    GE31ZO GE31ZO-2RS 1.2500  2.0000  1.0930  0.9370  1.7950  0.024  0.039
    GEZ106ES GEZ106ES-2RS 34.9250  55.5630  30.1500  26.1870  49.2000  0.600  1.000  5 104 310 0.35
    SBB22 SBB22-2RS 34.9250  55.5630  30.1500  26.1870  49.2000  0.600  1.000
    GE34ZO GE34ZO-2RS 1.3750  2.1875  1.1870  1.0310  1.9370  0.024  0.039
    GEZ108ES GEZ108ES-2RS 38.1000  61.9130  33.3250  28.5750  54.7370  0.600  1.000  6 125 375 0.42
    SBB24 SBB24-2RS 38.1000  61.9130  33.3250  28.5750  54.7370  0.600  1.000
    GE38ZO GE38ZO-2RS 1.5000  2.4375  1.3120  1.1250  2.1550  0.024  0.039
    GEZ112ES GEZ112ES-2RS 44.4500  71.4380  38.8870  33.3250  63.8810  0.600  1.000  6 170 510 0.64
    SBB28 SBB28-2RS 44.4500  71.4380  38.8870  33.3250  63.8810  0.600  1.000
    GE44ZO GE44ZO-2RS 1.7500  2.8125  1.5310  1.3120  2.5150  0.024  0.039
    GEZ200ES GEZ200ES-2RS 50.8000  80.9630  44.4500  38.1000  73.0250  0.600  1.000  6 224 670 0.93
    SBB32 SBB32-2RS 50.8000  80.9630  44.4500  38.1000  73.0250  0.600  1.000
    GE50ZO GE50ZO-2RS 2.0000  3.1875  1.7500  1.5000  2.8750  0.024  0.039
    GEZ204ES GEZ204ES-2RS 57.1500  90.4880  50.0130  42.8500  82.1690  0.600  1.000  6 280 850 1.3
    SBB36 SBB36-2RS 57.1500  90.4880  50.0130  42.8500  82.1690  0.600  1.000
    GE57ZO GE57ZO-2RS 2.2500  3.5625  1.9690  1.6870  3.2350  0.024  0.039
    GEZ208ES GEZ208ES-2RS 63.5000  100.0130  55.5500  47.6250  91.1860  0.600  1.000  6 345 1040 1.85
    SBB40 SBB40-2RS 63.5000  100.0130  55.5500  47.6250  91.1860  0.600  1.000
    GE63ZO GE63ZO-2RS 2.5000  3.9375  2.1870  1.8750  3.5900  0.024  0.039
    GEZ212ES GEZ212ES-2RS 69.8500  111.1250  61.1120  52.3750  100.3300  0.600  1.000  6 425 1270 2.4
    SBB44 SBB44-2RS 69.8500  111.1250  61.1120  52.3750  100.3300  0.600  1.000
    GE69ZO GE69ZO-2RS 2.7500  4.3750  2.4060  2.0620  3.9500  0.024  0.039
    GEZ300ES GEZ300ES-2RS 76.2000  120.6500  66.6750  57.1500  109.5250  0.600  1.000  6 500 1500 3.1
    SBB48 SBB48-2RS 76.2000  120.6500  66.6750  57.1500  109.5250  0.600  1.000
    GE76ZO GE76ZO-2RS 3.0000  4.7500  2.6250  2.2500  4.3120  0.024  0.039
    GEZ304ES GEZ304ES-2RS 82.5500  130.1750  72.2380  61.9000  118.7450  0.600  1.000  6 585 1760 3.8
    SBB52 SBB52-2RS 82.5500  130.1750  72.2380  61.9000  118.7450  0.600  1.000
    GE82ZO GE82ZO-2RS 3.2500  5.1250  2.8440  2.4370  4.6750  0.024  0.039
    GEZ308ES GEZ308ES-2RS 88.9000  139.7000  77.7750  66.6750  128.0160  0.600  1.000  6 680 2040 4.8
    SBB56 SBB56-2RS 88.9000  139.7000  77.7750  66.6750  128.0160  0.600  1.000
    GE88ZO GE88ZO-2RS 3.5000  5.5000  3.0620  2.6250  5.0400  0.024  0.039
    GEZ312ES GEZ312ES-2RS 95.2500  149.2250  83.3370  71.4250  136.9060  0.600  1.000  6 780 2360 5.8
    SBB60 SBB60-2RS 95.2500  149.2250  83.3370  71.4250  136.9060  0.600  1.000
    GE95ZO GE95ZO-2RS 3.7500  5.8750  3.2810  2.8120  5.3900  0.024  0.039
    GEZ400ES GEZ400ES-2RS 101.6000  158.7500  88.9000  76.2000  146.0500  0.600  1.000  6 900 2650 7
    SBB64 SBB64-2RS 101.6000  158.7500  88.9000  76.2000  146.0500  0.600  1.000
    GE101ZO GE101ZO-2RS 4.0000  6.2500  3.5000  3.0000  5.7500  0.024  0.039
    GEZ408ES GEZ408ES-2RS 114.3000  177.8000  100.0000  85.7250  164.4650  1.000  1.100  6 1120 3400 9.8
    SBB72 SBB72-2RS 114.3000  177.8000  100.0000  85.7250  164.4650  1.000  1.100
    GE114ZO GE114ZO-2RS 4.5000  7.0000  3.9370  3.3750  6.4750  0.039  0.043
    GEZ412ES GEZ412ES-2RS 120.6500  187.3250  105.5620  90.4750  173.3550  1.000  1.100  6 1250 3750 11.5
    SBB76 SBB76-2RS 120.6500  187.3250  105.5620  90.4750  173.3550  1.000  1.100
    GE120ZO GE120ZO-2RS 4.7500  7.3750  41.1560  3.5620  6.8250  0.039  0.043
    GEZ500ES GEZ500ES-2RS 127.0000  196.8500  111.1250  95.2500  182.6260  1.000  1.100  6 1400 4150 13.5
    SBB80 SBB80-2RS 127.0000  196.8500  111.1250  95.2500  182.6260  1.000  1.100
    GE127ZO GE127ZO-2RS 5.0000  7.7500  4.3750  3.7500  7.1900  0.039  0.043
    GEZ600ES GEZ600ES-2RS 152.4000  222.2500  120.6500  104.7750  207.1620  1.000  1.100  5 1730 5200 17.5
    SBB96 SBB96-2RS 152.4000  222.2500  120.6500  104.7750  207.1620  1.000  1.100
    GE152ZO GE152ZO-2RS 6.0000  8.7500  4.7500  4.1250  8.1560  0.039  0.043
    SBB68 SBB68-2RS 107.9500  168.2750  94.4600  80.9500  155.0000  0.800  1.000    1230 7830 8.46

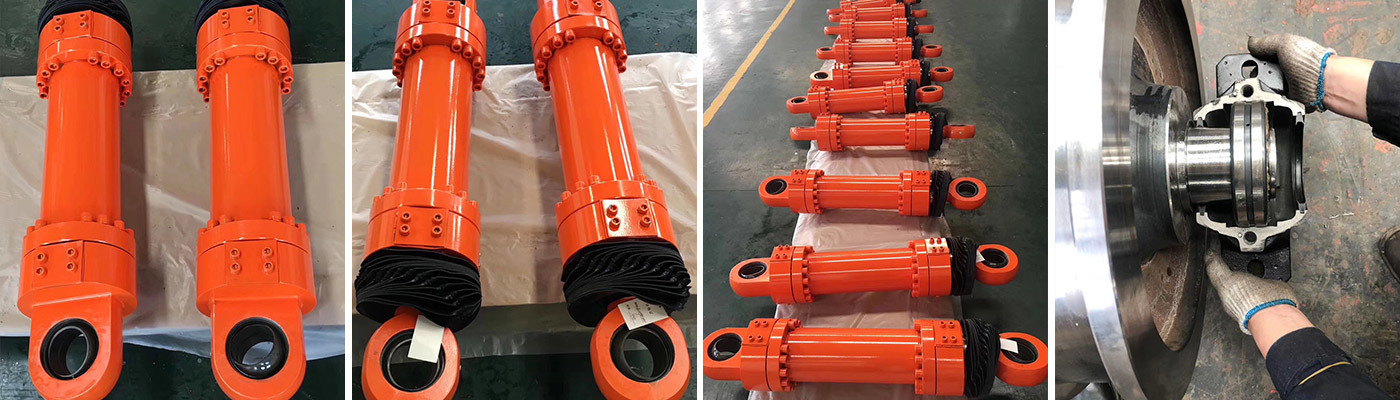

    • Applications / GEZ..ES GEZ..ES-2RS GE..ZO GE..ZO-2RS inch series bearings
    1. A-frames, dump cylinders, front and rear struts, and steering cylinders for mining trucks
    2. Equalizer track bars, lift and tilt cylinders, push blades, trunnion balls and ripper blades for bulldozers
    3. Articulated joint upper and lower steering cylinders and boom and bucket cylinders for wheel loaders
    4. Stick and bucket cylinders for hydraulic excavators
    5. Additional applications for space shuttles, heavy movable structures and miscellaneous vehicles
