GEG..E GEG..ES-2RS series bearings

GEG..E GEG..ES-2RS series bearings
FGB Bearings offers a complete line of spherical plain bearings (Joint ball bearings) available in inch and metric. FGB's spherical plain bearings are divided into two main categories based upon the need and ability for lubrication: Spherical Plain Bearings Requiring Maintenance and Maintenance-Free Spherical Plain Bearings Size range: from 0.5" to 12" inches, as well as metric sizes from as small as 4 to 600 mm. Custom sizes can also be ordered.

Category:

Radial spherical plain bearings

Email：FGB@FGBearing.com FGBearing@mail.ru

WhatsApp：+86-1 8865252255 +86-13034538296

Inquiry

Contact

Product Description
Parameter
Application
Factory
Honor
Honor

Interchange:

FGB Bearing series	LS Bearing series	SKF Bearing series	INA Bearing series	FERROBAL series	IKO Bearing series
GEG..E	GEG..E	GEH..E	GE..FO	DGEG-ES	GE..GS
GEG..ES	GEG..ES	GEH..ES	GE..FO	DGEG-ES	GE..GS
GEG..ES-2RS	GEG..ES-2RS	GEH..ES-2RS	GE..FO-2RS	DGEG-ES-2RS	GE..GS-2RS
for example
GEG40ES-2RS	GEG40ES-2RS	GEH40ES-2RS	GE40FO-2RS	DGEG40ES-2RS	GE40GS-2RS

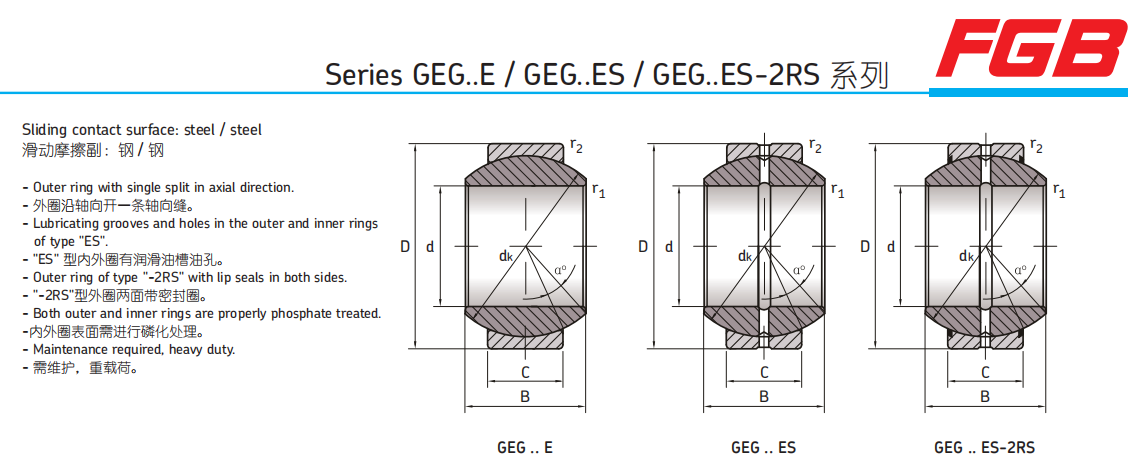

GEG..E (GEH..E) – Steel on Steel, Metric Dimension, for high misalignment.
GEG..ES (GEH..ES) – Steel on Steel, Metric Dimension, with lubrication groves, for high misalignment.
GEG..ES-2RS (GEH..ES-2RS) – Steel on Steel, Metric Dimension, with Seals, with lubrication groves, for high misalignment.

SPHERICAL PLAIN BEARING / JOINT BALL BEARING

FGB's spherical Plain Bearings (Joint ball bearings) are used in high load and severe misalignment conditions. They may also be used in applications requiring low speed oscillation or tilting motion. spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface without any rolling elements. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds, often accompanied with heavy loads.

While all plain bearings are precision ground and made from through-hardened steel, custom orders are available and can include special materials, clearances, surface finishes or configurations to accommodate unique applications.

FGB's spherical plain bearings are divided into two main categories based upon the need and ability for lubrication: Spherical Plain Bearings Requiring Maintenance and Maintenance-Free Spherical Plain Bearings.

FGB Bearings offers a complete line of spherical bearings available in inch and metric.

Size range: from 0.5" to 12" inches, as well as metric sizes from as small as 4 to 600 mm. Custom sizes can also be ordered.

Design Attributes

Rings manufactured from hardened steel help deliver consistent, reliable performance.
Phosphate-treated rings coated with molybdenum disulfide (MoS2) minimize friction of contacting surfaces.
Simplified housing and shaft designs reduce installation time.

Applications

A-frames, dump cylinders, front and rear struts, and steering cylinders for mining trucks
Equalizer track bars, lift and tilt cylinders, push blades, trunnion balls and ripper blades for bulldozers
Articulated joint upper and lower steering cylinders and boom and bucket cylinders for wheel loaders
Stick and bucket cylinders for hydraulic excavators
Additional applications for space shuttles, heavy movable structures and miscellaneous vehicles

Key words:

Joint ball bearings
spherical plain bearing
GEH20ES-2RS
GEG20ES-2RS
GE20FO-2RS

FGB Item no.		Principal dimensions								Basic load ratings		Mass
		d	D	B	C	dk	r1	r2	α	Dynamic	Static	Mass
		mm							Deg.	C (kN)	C0 (kN)	kg
GEG 4 E		4	14	7	4	10	0.3	0.3	20	3.4	17	0.005
GEG 5 E		5	16	9	5	13	0.3	0.3	21	5.5	27	0.008
GEG 6 E		6	16	9	5	13	0.3	0.3	21	5.5	27	0.006
GEG 8 E		8	19	11	6	16	0.3	0.3	21	8.1	40	0.014
GEG 10 E		10	22	12	7	18	0.3	0.3	18	10	53	0.021
GEG 12 E		12	26	15	9	22	0.3	0.3	18	16	84	0.03
GEG 15 ES	GEG 15 ES-2RS	15	30	16	10	25	0.3	0.3	16	21	106	0.05
GEG 17 ES	GEG 17 ES-2RS	17	35	20	12	29	0.3	0.3	19	30	146	0.08
GEG 20 ES	GEG 20 ES-2RS	20	42	25	16	35.5	0.3	0.6	17	48	240	0.16
GEG 25 ES	GEG 25 ES-2RS	25	47	28	18	40.7	0.6	0.6	17	62	310	0.2
GEG 30 ES	GEG 30 ES-2RS	30	55	32	20	47	0.6	1	17	80	400	0.304
GEG 35 ES	GEG 35 ES-2RS	35	62	36	22	53	0.6	1	15	100	500	0.408
GEG 40 ES	GEG 40 ES-2RS	40	68	40	25	60	0.6	1	17	127	640	0.542
GEG 45 ES	GEG 45 ES-2RS	45	75	43	28	66	0.6	1	14	156	780	0.713
GEG 50 ES	GEG 50 ES-2RS	50	90	56	36	80	0.6	1	17	245	1220	1.44
GEG 60 ES	GEG 60 ES-2RS	60	105	63	40	92	1	1	17	315	1560	1.6
GEG 70 ES	GEG 70 ES-2RS	70	120	70	45	105	1	1	16	400	2000	3
GEG 80 ES	GEG 80 ES-2RS	80	130	75	50	115	1	1	14	490	2450	3.64
GEG 90 ES	GEG 90 ES-2RS	90	150	85	55	130	1	1	15	610	3050	5.22
GEG 100 ES	GEG 100 ES-2RS	100	160	85	55	140	1	1	13	655	3250	6.1
GEG 110 ES	GEG 110 ES-2RS	110	180	100	70	160	1	1	12	950	4750	9.68
GEG 120 ES	GEG 120 ES-2RS	120	210	115	70	180	1	1	16	1080	5400	14.8
GEG 140 ES	GEG 140 ES-2RS	140	230	130	80	200	1	1	16	1360	6800	19
GEG 160 ES	GEG 160 ES-2RS	160	260	135	80	225	1.1	1.1	16	1530	7650	20
GEG 180 ES	GEG 180 ES-2RS	180	290	155	100	250	1.1	1.1	14	2120	10600	32.2
GEG 200 ES	GEG 200 ES-2RS	200	320	165	100	275	1.1	1.1	15	2320	11600	45.28
GEG 220 ES	GEG 220 ES-2RS	220	340	175	100	300	1.1	1.1	16	2550	12700	51
GEG 240 ES	GEG 240 ES-2RS	240	370	190	110	325	1.1	1.1	15	3030	15190	65.12
GEG 260 ES	GEG 260 ES-2RS	260	400	205	120	350	1.1	1.1	15	3570	17850	82.5
GEG 280 ES	GEG 280 ES-2RS	280	430	210	120	375	1.1	1.1	15	3800	19100	97.21

- Applications
1. A-frames, dump cylinders, front and rear struts, and steering cylinders for mining trucks
2. Equalizer track bars, lift and tilt cylinders, push blades, trunnion balls and ripper blades for bulldozers
3. Articulated joint upper and lower steering cylinders and boom and bucket cylinders for wheel loaders
4. Stick and bucket cylinders for hydraulic excavators
5. Additional applications for space shuttles, heavy movable structures and miscellaneous vehicles

MESSAGE

Have a question about FGB company or our products? Let's connect!

Radial spherical plain bearings
