GEG-C / GEH-C maintenance-free spherical plain bearing

GEG-C / GEH-C spherical plain bearings have a steel/PTFE sintered bronze contact surface combination and are maintenance-free. The sliding surfaces have to be externally protected from contaminants.

Category:

Maintenance-free spherical plain bearings

Email：FGB@FGBearing.com FGBearing@mail.ru

WhatsApp：+86-1 8865252255 +86-13034538296

Inquiry

Contact

Product Description
Parameter
Application
Factory
Honor
Honor

GEG..C / GEH..C Radial spherical plain bearing, maintenance-free, metric sizes
These spherical plain bearings have a steel/PTFE sintered bronze contact surface combination and are maintenance-free. The sliding surfaces have to be externally protected from contaminants.

1. Designed for radial and combined radial and axial loads
2. Long service life and maintenance-free
3. Suitable for heavy, constant direction loads
4. Low coefficient of friction
5. High operating temperatures
6. High sliding velocities and small operating clearances

GE4C / GE5C / GE6C / GE8C / GE10C / GE12C / GE15C / GE17C / GE20C / GE25C / GE30C / GE35C / GE40C

GEG4C / GEG5C / GEG6C / GEG8C / GEG10C / GEG12C / GEG15C / GEG17C / GEG20C / GEG25C / GEG30C / GEG35C / GEG40C

GEH4C / GEH5C / GEH6C / GEH8C / GEH10C / GEH12C / GEH15C / GEH17C / GEH20C / GEH25C / GEH30C / GEH35C / GEH40C
Key words:
- GEH-C spherical plain bearing
- GEG-C spherical plain bearing
- bronze bearing
- GEG8C bearing
- geg12c bearing
- GEG20C bearing
- steel/PTFE bearing

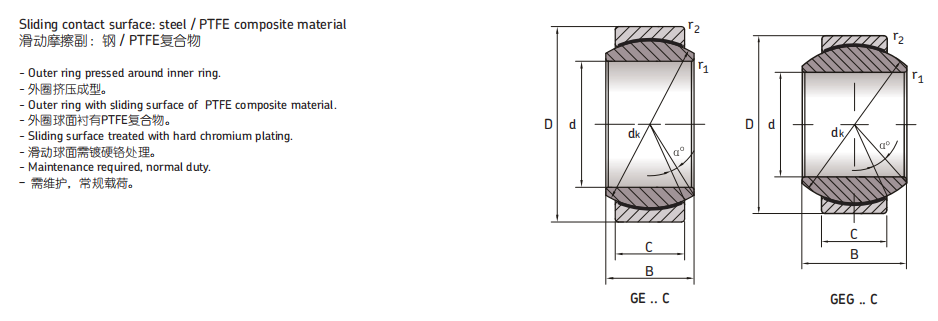

FGB Item no.	Principal dimensions								Basic load ratings		Mass
	d	D	B	C	dk	r1	r2	α	Dynamic	Static	Mass
	mm							Deg.	C (kN)	C0 (kN)	kg
GE 4 C	4	12	5	3	8	0.3	0.3	16	2.16	5.4	0.003
GE 5 C	5	14	6	4	10	0.3	0.3	13	3.6	9	0.005
GE 6 C	6	14	6	4	10	0.3	0.3	13	3.6	9	0.004
GE 8 C	8	16	8	5	13	0.3	0.3	15	5.85	14.6	0.008
GE 10 C	10	19	9	6	16	0.3	0.3	12	8.65	21.6	0.012
GE 12 C	12	22	10	7	18	0.3	0.3	10	11.4	28.5	0.017
GE 15 C	15	26	12	9	22	0.3	0.3	8	18	45	0.032
GE 17 C	17	30	14	10	25	0.3	0.3	10	22.4	56	0.05
GE 20 C	20	35	16	12	29	0.3	0.3	9	31.5	78	0.065
GE 25 C	25	42	20	16	35.5	0.6	0.6	7	51	127	0.12
GE 30 C	30	47	22	18	40.7	0.6	0.6	6	65.5	166	0.16
GE 35 C	35	55	25	20	47	0.6	1	6	80	200	0.23
GE 40 C	40	62	28	22	53	0.6	1	7	100	250	0.32
GE 45 C	45	68	32	25	60	0.6	1	7	127	320	0.46
GE 50 C	50	75	35	28	66	0.6	1	6	156	390	0.56
GE 60 C	60	90	44	36	80	1	1	6	245	610	1.1
GEG 4 C	4	14	7	4	10	0.3	0.3	20	3.6	9.1	0.005
GEG 5 C	5	16	9	5	10	0.3	0.3	21	5.8	14	0.008
GEG 6 C	6	16	9	5	13	0.3	0.3	21	5.8	14	0.006
GEG 8 C	8	19	11	6	16	0.3	0.3	21	8.6	21	0.014
GEG 10 C	10	22	12	7	18	0.3	0.3	18	11.4	28.5	0.02
GEG 12 C	12	26	15	9	22	0.3	0.3	18	18	45	0.03
GEG 15 C	15	30	16	10	25	0.3	0.3	16	22.4	56	0.05
GEG 17 C	17	35	20	12	29	0.3	0.3	19	31.5	78	0.09
GEG 20 C	20	42	25	16	35.5	0.3	0.6	17	51	127	0.16
GEG 25 C	25	47	28	18	40.7	0.6	0.6	17	65.5	166	0.2
GEG 30 C	30	55	32	20	47	0.6	0.6	17	83	212	0.67
GEG 40 C	40	68	40	25	60	0.6	1	17	135	337	0.542
GEG 45 C	45	75	43	28	66	0.6	1	15	166	415	0.713

Applications
1. A-frames, dump cylinders, front and rear struts, and steering cylinders for mining trucks
2. Equalizer track bars, lift and tilt cylinders, push blades, trunnion balls and ripper blades for bulldozers
3. Articulated joint upper and lower steering cylinders and boom and bucket cylinders for wheel loaders
4. Stick and bucket cylinders for hydraulic excavators
5. Additional applications for space shuttles, heavy movable structures and miscellaneous vehicles
