GF series Rod Ends For Hydraulic Components
Rod end, requires maintenance, rectangular section welding shank

These FGB rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a grease fitting in the housing and via the shaft. The housing with the rectangular section welding shank enables heavy static loads.

Features and benefits:
welding shank with cylindrical or rectangular section
simple and ready-to-mount
Easy to relubricate
Bearing can be exchanged
Suitable for heavy static, alternating or impact loads

Interchange:

FGB Bearing series	LS Bearing series	SKF Bearing series	INA Bearing series
GF...DO	SF...ES	SCF...ES	GF...DO
for example
GF20DO	SF20ES	SCF20ES	GF20DO

Key words:

Aligning roller bearing

Item No.	Principal dimensions									Load ratings		Weight
	d	B	dk	C1	d2	h	l2	rs	αº	Dynamic	Static	Weight
	mm								Deg.	C (kN)	C0 (kN)	≈kg
GF15DO	15	12	22	16	45	31	53.5	0.3	8	16	53	0.22
GF16DO	16	14	25	17.5	48	35	59	0.3	10	21	59	0.29
GF17DO	17	14	25	17.5	48	35	59	0.3	10	21	59	0.28
GF20DO	20	16	29	19	50	38	63	0.3	9	30	67	0.36
GF25DO	25	20	35.5	23	55	45	72.5	0.6	7	48	69	0.53
GF30DO	30	22	40.7	28	65	51	83.5	0.6	6	62	118	0.85
GF35DO	35	25	47	30	83	61	102.5	0.6	6	79	196	1.5
GF40DO	40	28	53	35	100	69	119	0.6	7	99	305	2.42
GF45DO	45	32	60	40	110	77	132	0.6	7	127	386	3.39
GF50DO	50	35	66	40	123	88	149.5	0.6	6	156	441	4.24
GF60DO	60	44	80	50	140	100	170	1	6	245	570	7.1
GF70DO	70	49	92	55	164	115	197	1	6	313	724	10.7
GF80DO	80	55	105	60	180	141	231	1	6	400	804	15.1
GF90DO	90	60	115	65	226	150	263	1	5	488	1340	23.4
GF100DO	100	70	130	70	250	170	295	1	7	607	1516	33.1
GF110DO	110	70	140	80	295	185	332.5	1	6	654	2340	48.5
GF120DO	120	85	160	90	360	210	390	1	6	950	3210	79.5

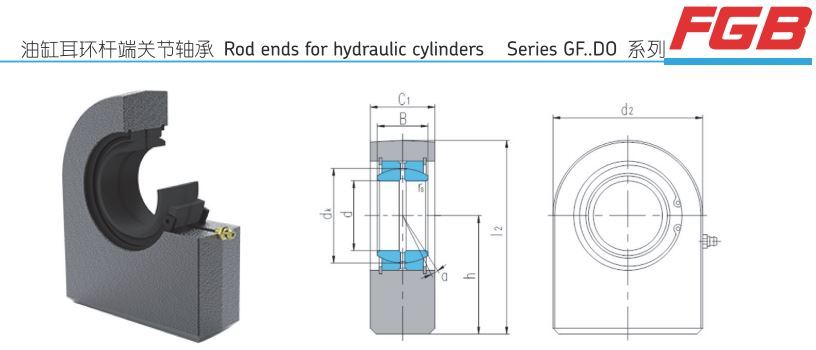

GF series Rod Ends For Hydraulic Components

Rod Ends with rectangular surface for weld-on Spherical Plain Bearings, regreasable, fixed with snap rings

For Weld-On to cylinder bottoms

Materials:
Housing - 45#. forged
Bearing - Steel on steel bearing GE...DO. requiring lubrication
Greasing: - Fitted with hydraulic grease nipples to DIN 71412.
