Radial spherical plain bearings

Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds, often accompanied with heavy loads.

Spherical plain bearings are manufactured in a wide variety of materials and are designed to offer bearing solutions in almost any operating environment. FGB Bearings offers a complete line of spherical bearings available in inch and metric. These High-Quality Spherical Plain Bearings are suitable for heavy-duty, off-highway vehicles, agricultural equipment, construction and mining and logging equipment, packaging and textile equipment, and robotics. The plain bearings come in standard industrial bore sizes from 0.5" to 12" inches, as well as metric sizes from as small as 4 to 600 mm. Custom sizes can also be ordered.
Design Attributes
- Rings manufactured from hardened steel help deliver consistent, reliable performance.
- Phosphate-treated rings coated with molybdenum disulfide (MoS2) minimize friction of contacting surfaces.
- Simplified housing and shaft designs reduce installation time.

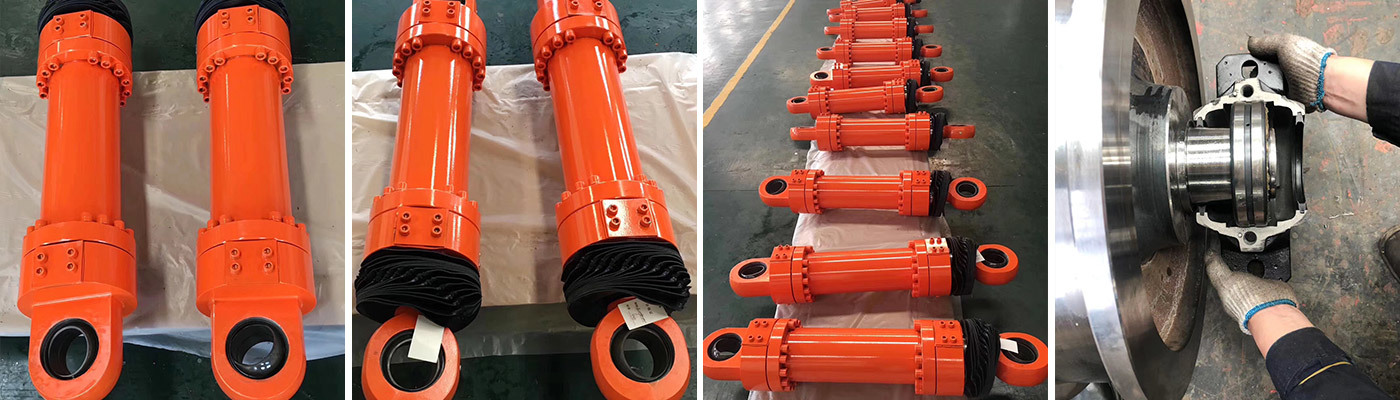

Applications
- A-frames, dump cylinders, front and rear struts, and steering cylinders for mining trucks
- Equalizer track bars, lift and tilt cylinders, push blades, trunnion balls and ripper blades for bulldozers
- Articulated joint upper and lower steering cylinders and boom and bucket cylinders for wheel loaders
- Stick and bucket cylinders for hydraulic excavators
- Additional applications for space shuttles, heavy movable structures and miscellaneous vehicles
Key words:
- bearings
- spherical plain bearings

Item no.		Principal dimensions								Basic load ratings		Mass
		d	D	B	C	dk	r1	r2	α	Dynamic	Static
		mm							Deg.	C (kN)	C0 (kN)	kg
GE 4 E		4	12	5	3	8	0.3	0.3	16	2.04	10.2	0.003
GE 5 E		5	14	6	4	10	0.3	0.3	13	3.4	17	0.004
GE 6 E		6	14	6	4	10	0.3	0.3	13	3.4	17	0.004
GE 8 E		8	16	8	5	13	0.3	0.3	15	5.5	27.5	0.006
GE 10 E		10	19	9	6	16	0.3	0.3	12	8.15	40.5	0.012
GE 12 E		12	22	10	7	18	0.3	0.3	10	10.8	54	0.017
GE 15 ES	GE 15 ES-2RS	15	26	12	9	22	0.3	0.3	8	17	85	0.032
GE 17 ES	GE 17 ES-2RS	17	30	14	10	25	0.3	0.3	10	21.2	106	0.05
GE 20 ES	GE 20 ES-2RS	20	35	16	12	29	0.3	0.3	9	30	146	0.065
GE 25 ES	GE 25 ES-2RS	25	42	20	16	35.5	0.6	0.6	7	48	240	0.12
GE 30 ES	GE 30 ES-2RS	30	47	22	18	40.7	0.6	0.6	6	62	310	0.16
GE 35 ES	GE 35 ES-2RS	35	55	25	20	47	0.6	1	6	80	400	0.23
GE 40 ES	GE 40 ES-2RS	40	62	28	22	53	0.6	1	7	100	500	0.32
GE 45 ES	GE 45 ES-2RS	45	68	32	25	60	0.6	1	7	127	640	0.46
GE 50 ES	GE 50 ES-2RS	50	75	35	28	66	0.6	1	6	156	780	0.56
GE 60 ES	GE 60 ES-2RS	60	90	44	36	80	1	1	6	245	1220	1.1
GE 70 ES	GE 70 ES-2RS	70	105	49	40	92	1	1	6	315	1560	1.55
GE 80 ES	GE 80 ES-2RS	80	120	55	45	105	1	1	6	400	2000	2.3
GE 90 ES	GE 90 ES-2RS	90	130	60	50	115	1	1	5	490	2450	2.75
GE 100 ES	GE 100 ES-2RS	100	150	70	55	130	1	1	7	610	3050	4.4
GE 110 ES	GE 110 ES-2RS	110	160	70	55	140	1	1	6	655	3250	4.8
GE 120 ES	GE 120 ES-2RS	120	180	85	70	160	1	1	6	950	4750	8.25
GE 140 ES	GE 140 ES-2RS	140	210	90	70	180	1	1	7	1080	5400	11
GE 160 ES	GE 160 ES-2RS	160	230	105	80	200	1	1	8	1370	6800	14
GE 180 ES	GE 180 ES-2RS	180	260	105	80	225	1.1	1.1	6	1530	7650	18.5
GE 200 ES	GE 200 ES-2RS	200	290	130	100	250	1.1	1.1	7	2120	10600	28
GE 220 ES	GE 220 ES-2RS	220	320	135	100	275	1.1	1.1	8	2320	11600	35.5
GE 240 ES	GE 240 ES-2RS	240	340	140	100	300	1.1	1.1	8	2550	12700	40
GE 260 ES	GE 260 ES-2RS	260	370	150	110	325	1.1	1.1	7	3050	15300	51.5
GE 280 ES	GE 280 ES-2RS	280	400	155	120	350	1.1	1.1	6	3550	18000	65
GE 300 ES	GE 300 ES-2RS	300	430	165	120	375	1.1	1.1	7	3800	19000	78.5

- A-frames, dump cylinders, front and rear struts, and steering cylinders for mining trucks
- Equalizer track bars, lift and tilt cylinders, push blades, trunnion balls and ripper blades for bulldozers
- Articulated joint upper and lower steering cylinders and boom and bucket cylinders for wheel loaders
- Stick and bucket cylinders for hydraulic excavators
- Additional applications for space shuttles, heavy movable structures and miscellaneous vehicles
